Step into a world where aerospace engineering meets automotive luxury with the eXalt SOLO. This high-performance personal aircraft redefines the flying experience, focusing on pilot ergonomics, intuitive controls, and a breathtaking aesthetic that looks fast even when standing still.
A single-seat light sport aircraft sold as a kit, aimed at private pilots who want the cockpit of a performance car and the build time of a weekend project rather than a second career.
F1-inspired cockpit ergonomics over a chromoly steel spaceframe, with an aluminium wing box and carbon fibre skins.
[ HOW IT WORKS ]
A kit that bolts together.
Most kit aircraft are a fabrication project disguised as a purchase. SOLO was architected the other way round: every major assembly arrives finished, and the builder's job is to join them, in sequence, with ordinary tools.
Side
Plan
Front
01/ 03Swipe
Spine over an open chromoly truss
Rectangular wing, no sweep, no taper
Slight dihedral
01
02
03
04
01/ 04Swipe

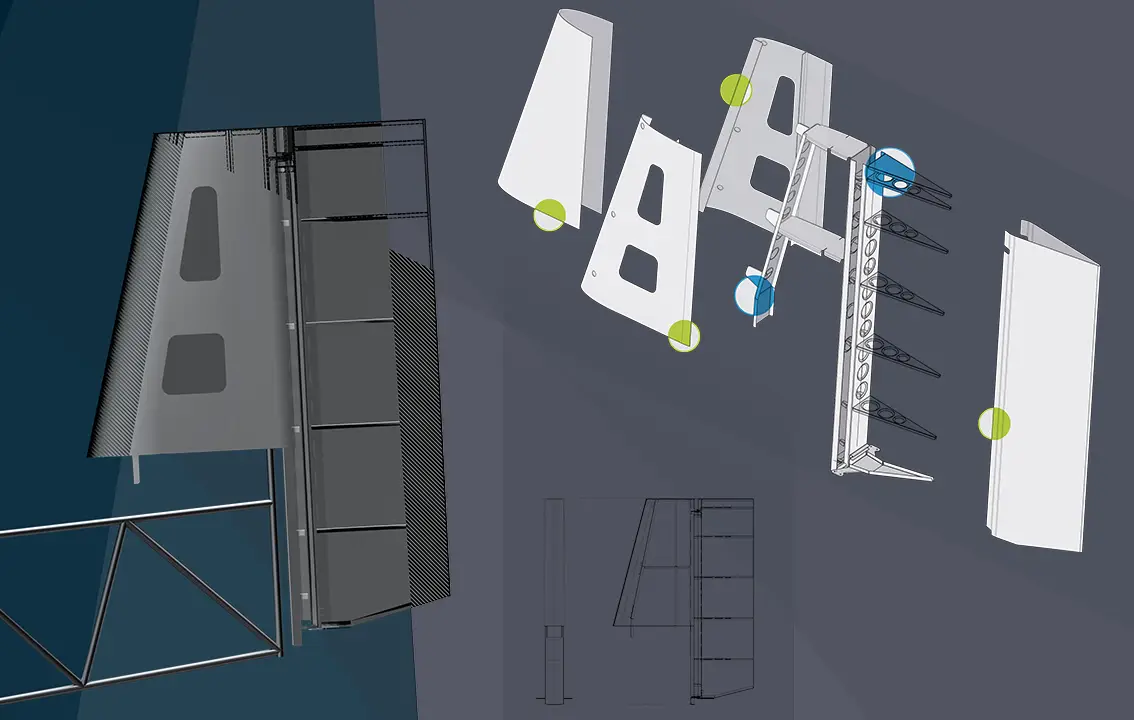

01 . CENTRAL SPAR
Aluminium, stepped root doublers
The six caissons thread onto it
02 . SIX CAISSONS
Carbon fibre, nesting
Each tongue enters the box before it
03 . REAR SPAR
Aluminium, closes the box
Flap and aileron hinge on it
04 . AILERON AND TELEFLEX
Bellcrank at the aileron root
The cable runs inboard to the stick
Crate opens
Designed to assemble in under 40 hours
[ PERFORMANCE ]
Sized before it was drawn.
In 2017 the SOLO was a set of equations before it was a shape: one seat, 800 lb at take-off, 73 sq ft of wing and a Rotax 582. The sizing then set the power the airframe needs at each speed against the power the engine and propeller give back. Drag along the chart, or the slider under it, to read it.
At 64 knots
Power available
42 hp
Power required
18 hp
Rate of climb
975 ft/min
Range
410 NM
At 64 knots
Available
42 hp
Required
18 hp
Climb
975 ft/min
Range
410 NM
At 64 knots
Power available
42 hp
Power required
18 hp
Rate of climb
975 ft/min
Range
410 NM
Concept sizing, 2017. Redrawn from the performance table of the conceptual design milestone, built on the Perkins and Hage method with a 4 sq ft equivalent frontal area. Thrust horsepower is the power that reaches the air through the propeller.
Performance against airspeed, every 10 knots
Knots
Power available, hp
Power required, hp
Rate of climb, ft/min
Range, NM
30
24
17
281
126
40
30
14
656
242
50
36
14
873
346
60
40
17
967
402
70
44
21
950
405
80
46
27
819
379
90
49
35
581
341
100
51
45
230
300
110
52
58
0
265
120
54
74
0
234
130
56
92
0
208
140
57
114
0
187
150
59
140
0
170
[ IN 3D ]
Walk around the mock-up.
The conceptual design as it stands in CATIA: the spine over the open chromoly truss, the tricycle gear, the three-blade propeller. Lightened for the browser, not redrawn, and given colors for this view rather than a livery.
Loading the model
Swipe sideways to turn it, pinch to come closer.
Drag to turn it; Ctrl and scroll, a pinch or the buttons bring it closer.
3/4
Side
Front
Top
Conceptual design . CATIA digital mock-up . lightened to 142,000 triangles
Conceptual design . CATIA digital mock-up . lightened to 142,000 triangles
[ INSIDE ]
Two disciplines, one airframe.
A spaceframe wants to be welded and left alone. A modular kit wants everything to come apart. Reconciling the two is the whole engineering problem, and it is decided at the joint, not at the surface.
Structure
Chromoly steel spaceframe
Aluminium wing box
Carbon fibre skin panels
Bolt-together module interfaces
Weight and balance envelope
Cockpit
F1-inspired seating position
Class A surfacing
Control layout and reach study
Interior trim and CMF
Visibility and egress
[ WHAT ONMOTIO DID ]
From a concept to a funded programme.
eXalt needed more than a beautiful aircraft. They needed a document a government funding body would act on, and a design that could survive the scrutiny that comes with it.
We delivered the full industrial design, the Class A surfacing, the cockpit ergonomics and the structural architecture, then wrote the 100-plus page strategic plan that carried the funding case.
Aerodynamic CFD
2017
Sized before any surface was drawn: NACA 63-418, 73 sq ft of wing for 800 lb, 17.5 and 8.4 sq ft of tail.
Cockpit VR studies
2017
Posture, reach and view set around the pilot first, then tried in virtual reality inside the chromoly spaceframe.
Clay and Class A
2017
The outer surfaces built in 3D as Class A masterlines: 7.8 m span, 5.58 m long, 2.4 m high.
Interior and CMF
2018
Color, material and finish: livery boards on the side view, and a cockpit interior taken to its final model.
Structural architecture
2018
Every assembly numbered in a single CATIA V5 product tree, from the fuselage to the mirrored wing half.
Strategic plan
2018
Version 3.0, March 2018: the 103-page document that carried the funding case, from the product to its growth strategy.
01/ 06Swipe
01
02
03
04
05
06
2017
Aerodynamic CFD
We started from the design requirements: one occupant, a 200 lb pilot, a Rotax 582, a rectangular wing of aspect ratio 7. Wing loading set the take-off weight and the wing area, the wing area set the span and the 3.2 ft chord, then came the tail surfaces. A performance table on the Perkins and Hage method gave lift-off at 47 knots and runs of 361 and 405 ft. These figures framed the style work.
2017

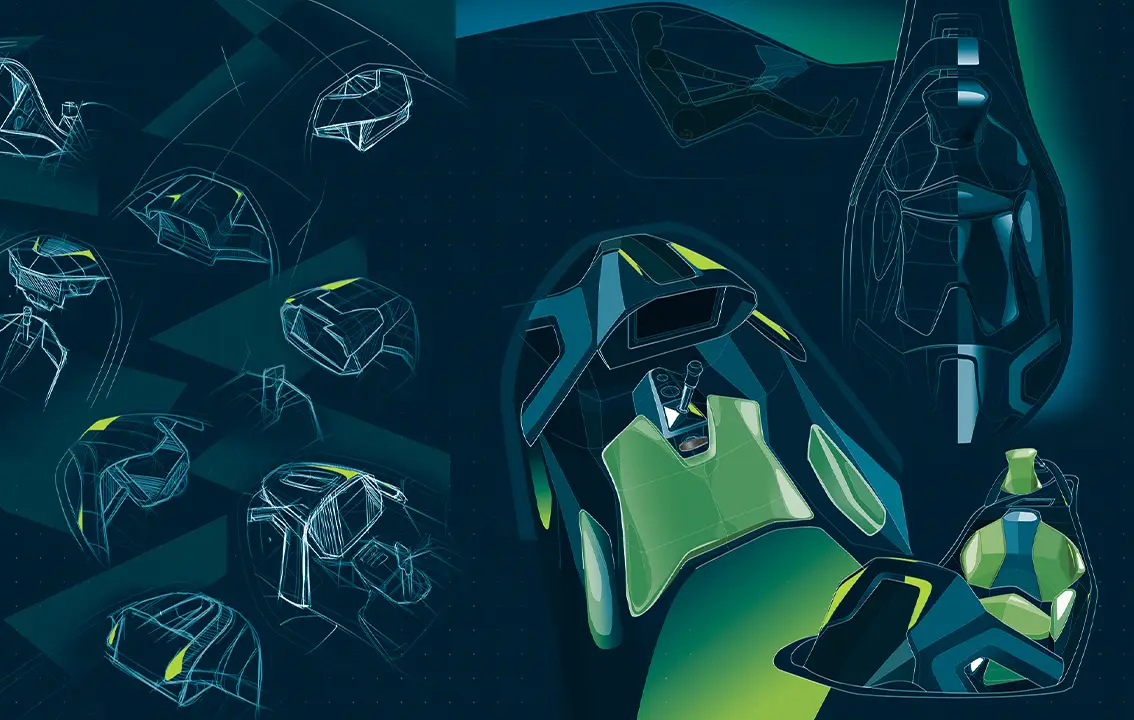

Cockpit VR studies

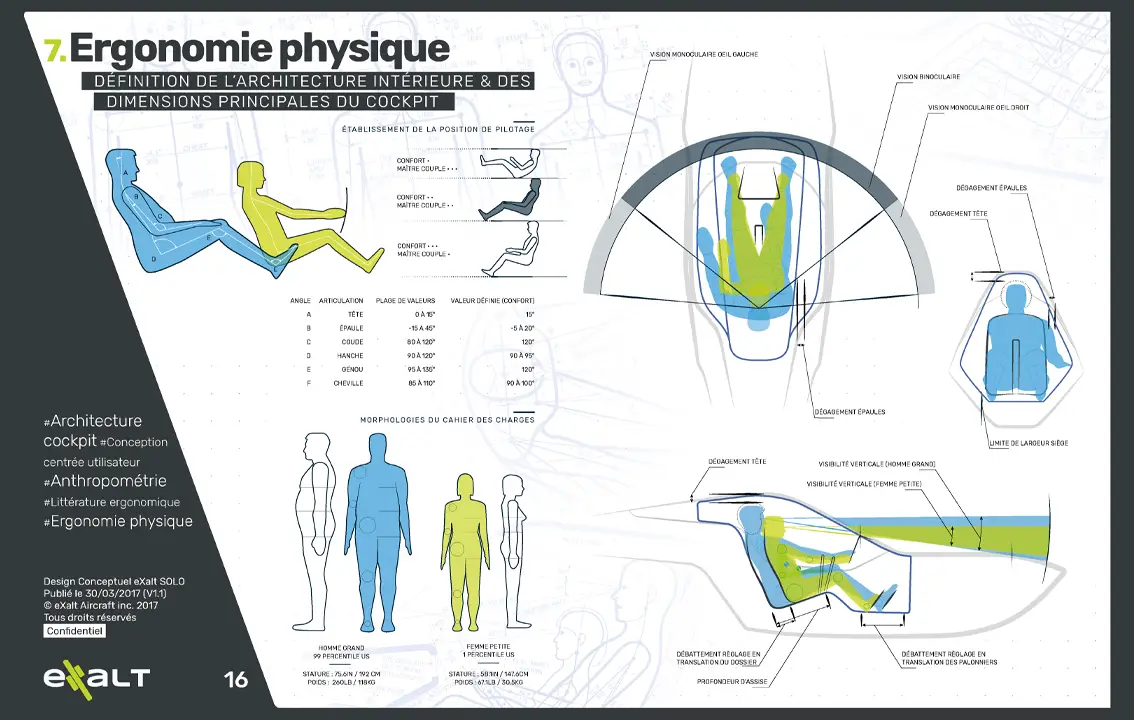

Seated packages for a 1.50 m and a 1.90 m pilot set the seat, the reach to the stick and the tub that carries them, and monocular and binocular sight lines fixed the view over the cowl. The posture was then checked in virtual reality, with a mannequin seated in the spaceframe in Gravity Sketch. The cockpit envelope went to the surfacing.
2017

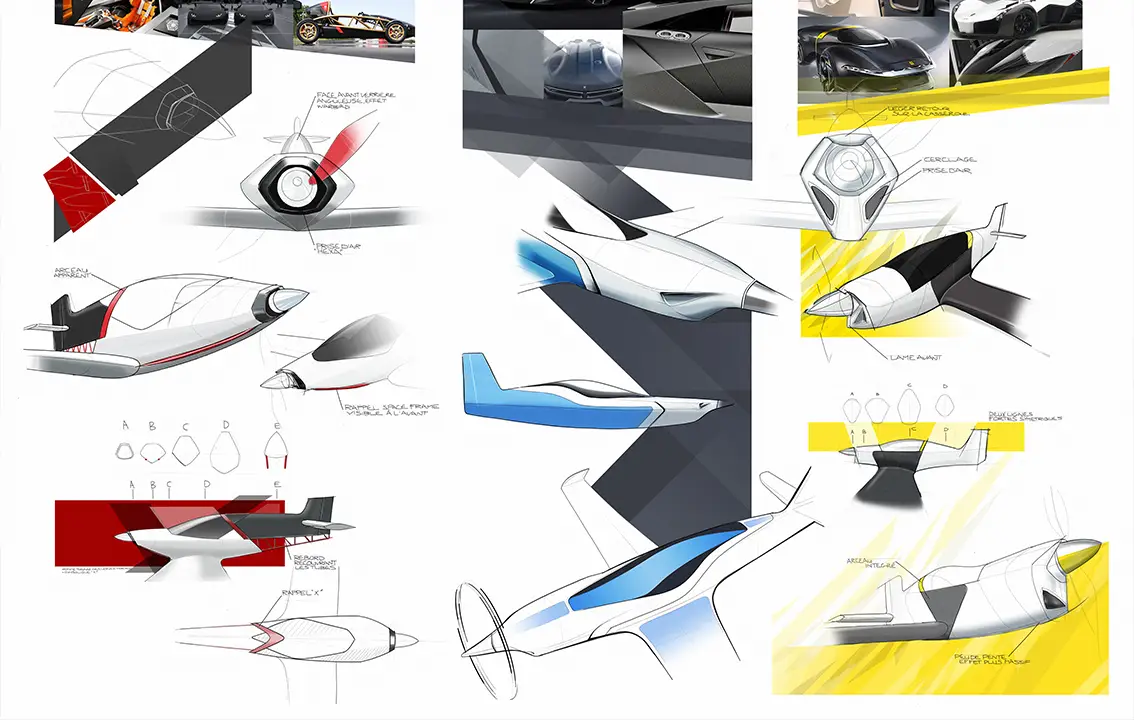

Clay and Class A

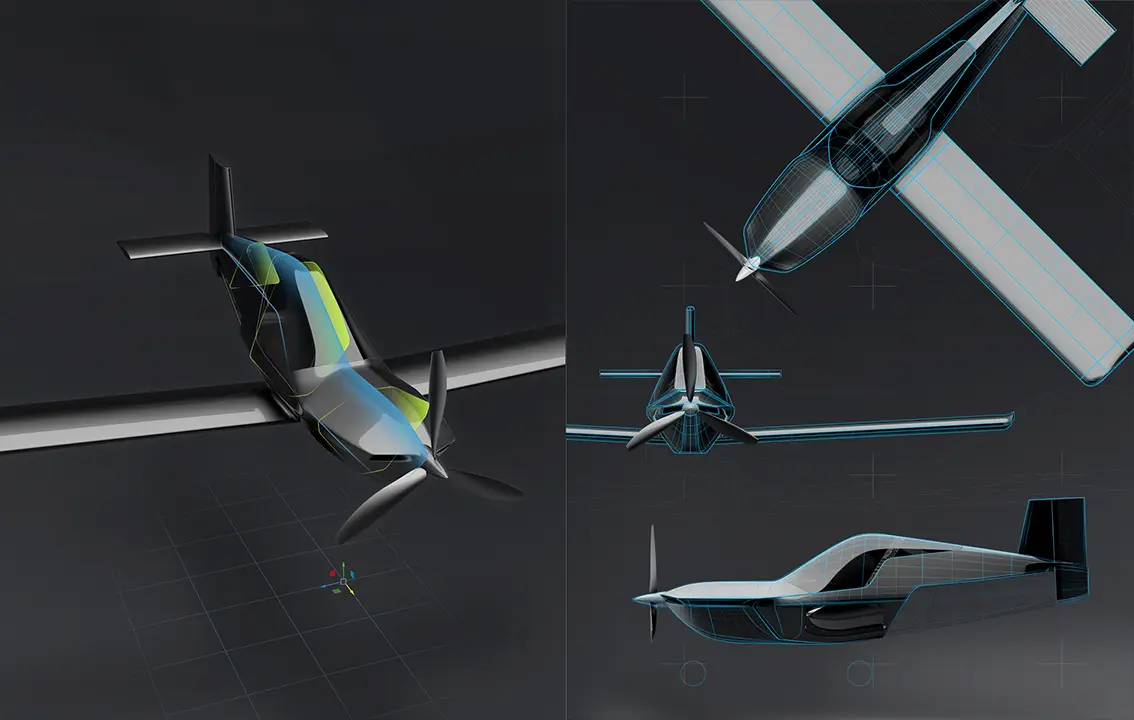

From the style research, three concepts, A, B and C, were sketched against the architecture constraints, and one direction was carried into 3D. Its outer surfaces were built as Class A masterlines with their plans of form and datums, bringing the style and the architecture together. The plan, front and side views drawn above come from these surfaces, and they framed the structure that followed.
2018

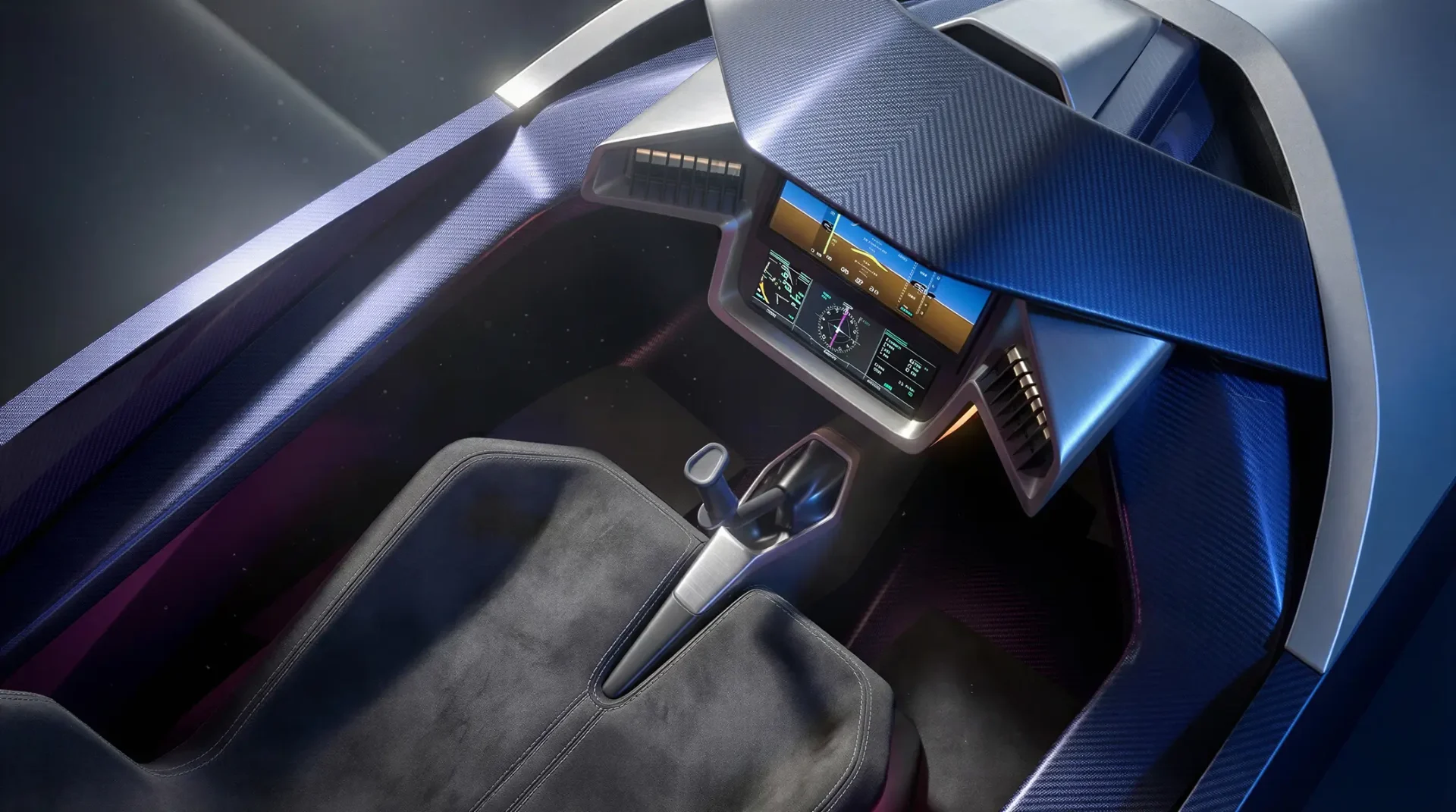

Interior and CMF
With the shape set, the work moved to color, material and finish. Livery boards tried twelve schemes in white, navy, lime and blue on the side view, each using the open truss as part of the graphics, and the corporate livery was drawn for the fuselage, wings and tailplane. Inside, the cockpit tub went through two iterations to a final interior modeled in Maya.
2018
Structural architecture
The architecture split the SOLO into modules that bolt together: a chromoly spaceframe, a carry-through and an aluminium central spar, six carbon caissons per wing, the empennages, a tricycle gear, the firewall and the Rotax 582 mount. All of them sit in one CATIA V5 digital mock-up, where the interfaces between modules were worked out together rather than part by part.
2018
Strategic plan
The strategic development plan put eXalt's program in writing for its funders. It opens on ONMOTIO, the studio behind the design, its market and its competitors, then sets out the eXalt Aircraft business plan: the SOLO and its market, its selling points, the operations and the growth strategy. It is the document behind the funding case described further down this page.
We delivered the full industrial design, the Class A surfacing, the cockpit ergonomics and the structural architecture, then wrote the 100-plus page strategic plan that carried the funding case.
Three calls that shaped it
Assembly
Modules that bolt together with ordinary tools
instead ofA traditional kit built from parts by the owner
It moves the difficult work back to the factory, which raises unit cost and shrinks the customer's build from a multi-year commitment to a weekend.
Cockpit
A car-derived seating position and control layout
instead ofConventional light aircraft ergonomics
It sets the fuselage cross-section, which sets the frontal area, which the aerodynamics then have to pay for. The shape of the aircraft follows from where the pilot sits.
Materials
Steel frame, aluminium box, carbon skins
instead ofA single-material composite airframe
Three materials means three processes and three sets of tolerances meeting at the same joints. It buys repairability and a builder who does not need an autoclave.
Assembly
Modules that bolt together with ordinary tools
instead ofA traditional kit built from parts by the owner
It moves the difficult work back to the factory, which raises unit cost and shrinks the customer's build from a multi-year commitment to a weekend.
Cockpit
A car-derived seating position and control layout
instead ofConventional light aircraft ergonomics
It sets the fuselage cross-section, which sets the frontal area, which the aerodynamics then have to pay for. The shape of the aircraft follows from where the pilot sits.
Materials
Steel frame, aluminium box, carbon skins
instead ofA single-material composite airframe
Three materials means three processes and three sets of tolerances meeting at the same joints. It buys repairability and a builder who does not need an autoclave.
[ THE WORK ]

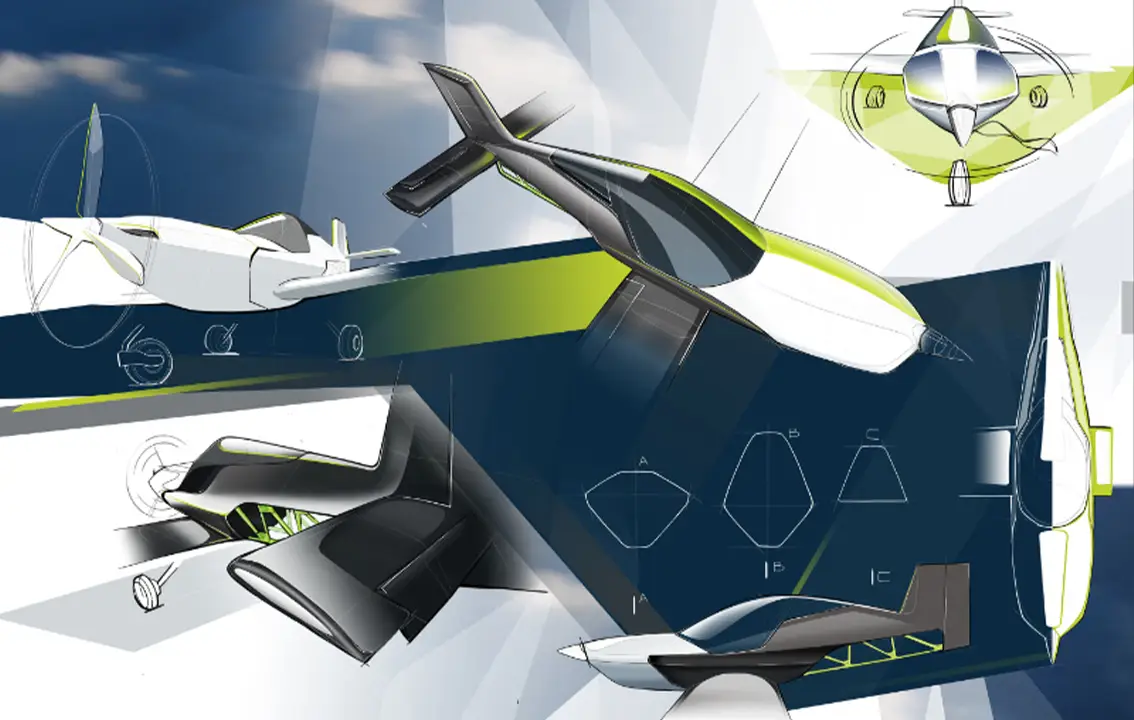

Concepts, sections and launch visuals.
[ WHERE IT WENT ]
It secured public funding.
The programme raised CAD 1.5M (about US$1.2M) in government funding and the design has been recognised in the industry. The assembly claim is the one that matters commercially: forty hours, without specialised tooling, against kits that traditionally take a builder years.
About US$1.2M
in government funding secured
40 hours
from crate to flight ready
100+ pages
of strategic plan behind the case
[ THE SAME TEAM ]
Bring us a problem at this stage.
This project needed several disciplines that usually sit at several different suppliers. Doing them under one roof is what stops a good concept from arriving at a factory that cannot quote it.
